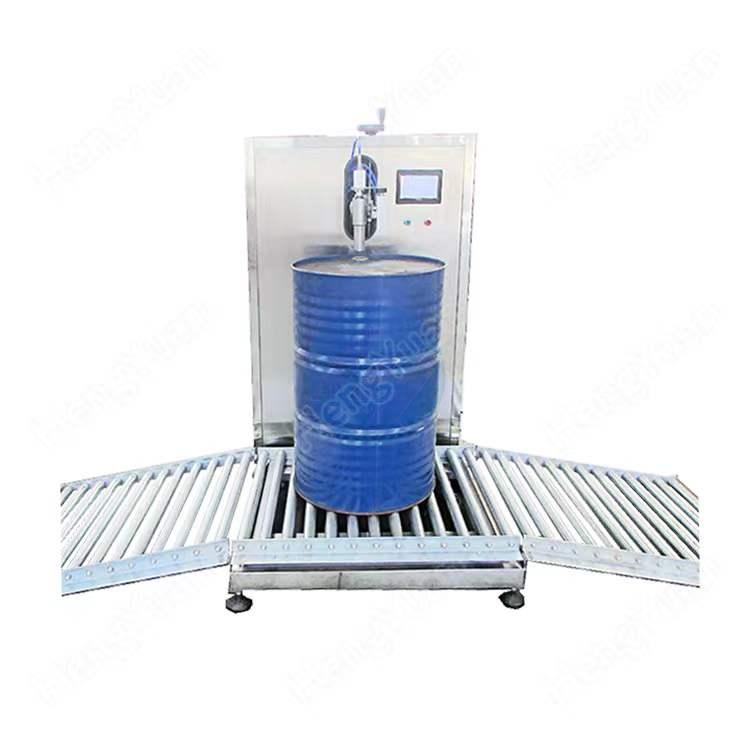

  • HYWF-200S Semi-automatic Weighing Type 100-200 KGS ( L ) Liquid Bottle Barrels Drum Filling Machine Filler Dispensing Equipment
  • HYWF-200S Semi-automatic Weighing Type 100-200 KGS ( L ) Liquid Bottle Barrels Drum Filling Machine Filler Dispensing Equipment
  • HYWF-200S Semi-automatic Weighing Type 100-200 KGS ( L ) Liquid Bottle Barrels Drum Filling Machine Filler Dispensing Equipment
  • HYWF-200S Semi-automatic Weighing Type 100-200 KGS ( L ) Liquid Bottle Barrels Drum Filling Machine Filler Dispensing Equipment
HYWF-200S Semi-automatic Weighing Type 100-200 KGS ( L ) Liquid Bottle Barrels Drum Filling Machine Filler Dispensing EquipmentHYWF-200S Semi-automatic Weighing Type 100-200 KGS ( L ) Liquid Bottle Barrels Drum Filling Machine Filler Dispensing EquipmentHYWF-200S Semi-automatic Weighing Type 100-200 KGS ( L ) Liquid Bottle Barrels Drum Filling Machine Filler Dispensing EquipmentHYWF-200S Semi-automatic Weighing Type 100-200 KGS ( L ) Liquid Bottle Barrels Drum Filling Machine Filler Dispensing Equipment

HYWF-200S Semi-automatic Weighing Type 100-200 KGS ( L ) Liquid Bottle Barrels Drum Filling Machine Filler Dispensing Equipment

  • Product Item：HYWF-200S
  • Filling Materials: Liquid, half-flowing liquid
  • Machinery Capacity: 100BPH, 200BPH
  • Marketing Type: Ordinary Product
  • Machine material: Stainless steel
    • 100kg motor oil filling machine , 180kg liquid barrel weighing filler , 200L motor oil weghing dispensing machine , cooking oil barrels filler
    Inquiry Send Email

    Description

    HYWF-200S Semi-automatic Weighing Dosing

    Liquid Filling Machine

    Product Introduction

    The semi-automatic weighing type filling machine has advantage of high accuracy when filling liquid. It is matched with touch screen and PLC to control filling. It is widely used in lubricant, cooking oil, food, cosmetics, daily chemical industries.

    Product Application
    100L Lubricant barrel filling machine, 100kg motor oil filling machine, 180kg liquid barrel weighing filler, 200L motor oil weghing dispensing machine, 150kg vegetable oil drum filling machine, cooking oil barrels filler, 100-200kg chemical raw liquid dispensing machine, etc.

    HYWF-200S Semi-automatic Weighing Dosing Liquid Filling Machine.

    21122002 HYWF-200S Semi-automatic Weighing Filling Machine

    Technical Parameters
    Filling heads qty
    1pc ( 2 pcs can be customized )
    Filling range
    100kg-200kg ( other weight can be customized )
    Filling nozzle outer diameter
    Customized according to bottle mouth
    Filling accuracy
    ≤±0.5%
    Filling speed
    20~30 drums/hour according to bottle filling volume
    Control method
    Pedal
    Working air pressure
    0.4-0.6Mpa
    Operation voltage
    220V or 380V or 415V, Three phases.
    Electricity consumption
    4.0Kw
    Machine size
    93*75*170cm ( main machine )
    330*72 cm ( roller )
    Weight
    300Kg
    Semi-automatic 180kg Weighing Filling Machine
    HYWF-200S Semi-automatic 100kg Weighing Filler

    Semi-automatic 00-200Liters Weighing Filling Machine

    Semi-automatic 200kg Weighing Filler

    89 HYWF-200S Semi-automatic 200kg Weighing Filling Machine
